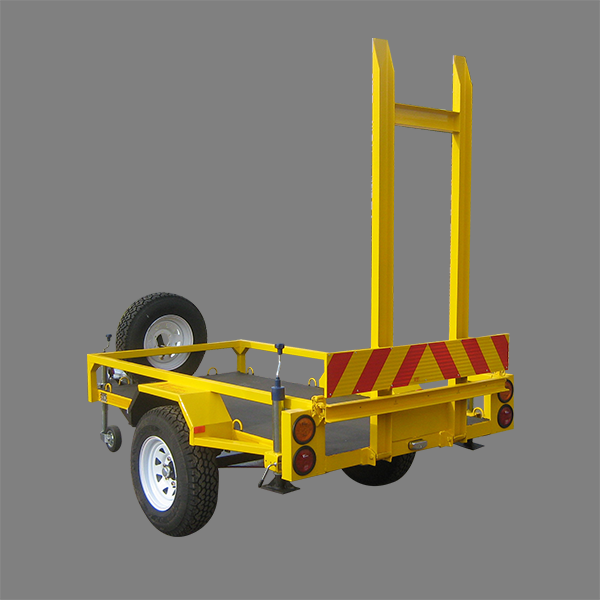

1500kg GVM Single Axle Bomac Trailer – 2.0m x 1.2m (Model EB1)

1. GENERAL

Type:
Bomac Trailer

GVM:
1500kg

2. CHASSIS/FRAME

Chassis Material:
76mm x 38mm x 5mm Thick Channel with 3 x Cross Beams

A-Frame Material:
76mm x 38mm x 5mm Open Channel

Additional Support:
2 x 50mm x 50mm Square Tube Beams in the length of the trailer

Construction:
Ladder frame

Corrosion Resistance:
Painted 2K Duco

3. BODY/DECK

Size:
2.0m x 1.2m

Floor Material:
2.0mm Plate Floor with the wheels on the outside of the trailer

Headboard:
300mm high open front – Main Frame 50mm Square Tube

Side Rails/Panels:
300mm high open sides – Main Frame 50mm Square Tube

Tailgate/Rear Gate:
300mm high open rear – Main Frame 50mm Square Tube

Ramps:
1 Set of Channel Ramps at the Back – 1.8m High – 100mm x 50mm x 6mm Open Channel

Anchor Points:
Rope tie-down points on the floor

4. AXLES/WHEELS

Number of Axles:
1

Axle Type:
Leaf springs

Axle Capacity:
1600kg each

Wheels:
14″

Spare Wheel:
14″ on the A-frame

Jockey Wheel:
60mm in front

5. COUPLER/BRAKES

Coupler Capacity:
2000kg Braked Coupler

Brakes:
Yes

6. LIGHTING

Type:
12V LED Lights

7. AVAILABLE UPGRADES

Sides:
N/A

Axles:
Upgrades available on request

Colour:
Available in White, Black, Green or Brown

PLEASE NOTE: Prices subject to change without prior notice.
