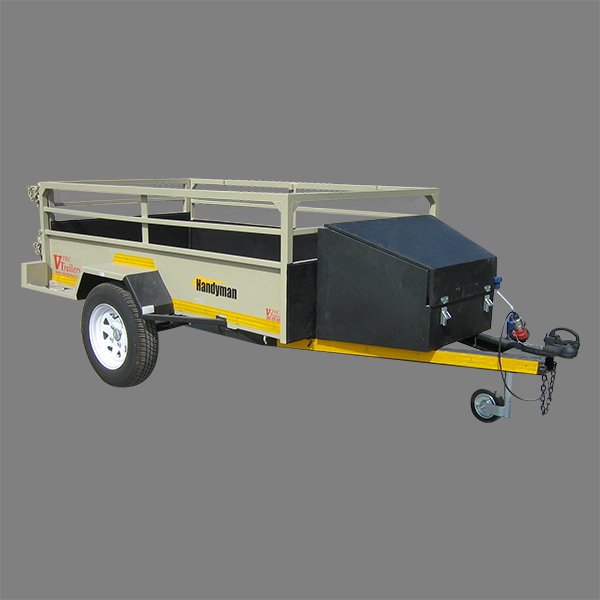

490kg GVM Single Axle Multi-Purpose Trailer – 2.1m x 1.2m (Model VKUL2)

1. GENERAL

Type:
Multi-Purpose

GVM:
490kg

2. CHASSIS/FRAME

Chassis Material:
76mm x 38mm x 2mm steel rectangle

A-Frame Material:
100mm x 50mm steel lipped channel

Construction:
Ladder frame with a 50mm flat bar in the middle

Corrosion Resistance:
Painted 2K Duco

3. BODY/DECK

Size:
2.1m x 1.2m

Floor Material:
1.2mm thick steel plate

Headboard:
600mm high, first 200mm closed with plate – main frame built from 38mm square tube

Side Rails/Panels:
600mm high, first 200mm closed with plate – main frame built from 38mm square tube

Tailgate/Rear Gate:
Tailgate with 2 anti-loose fasteners

Ramps:
N/A

Anchor Points:
N/A

4. AXLES/WHEELS

Number of Axles:
1

Axle Type:
Leaf springs

Axle Capacity:
750kg each

Wheels:
13″

Spare Wheel:
13″ on the A-frame

Jockey Wheel:
42mm in front

5. COUPLER/BRAKES

Coupler Capacity:
N/A

Brakes:
No

6. LIGHTING

Type:
Stirling lights

7. AVAILABLE UPGRADES

Sides:
Mesh sides available on request

Axles:
Upgrades available on request

Colour:
Available in White, Black, Green or Brown

PLEASE NOTE: Prices subject to change without prior notice.
