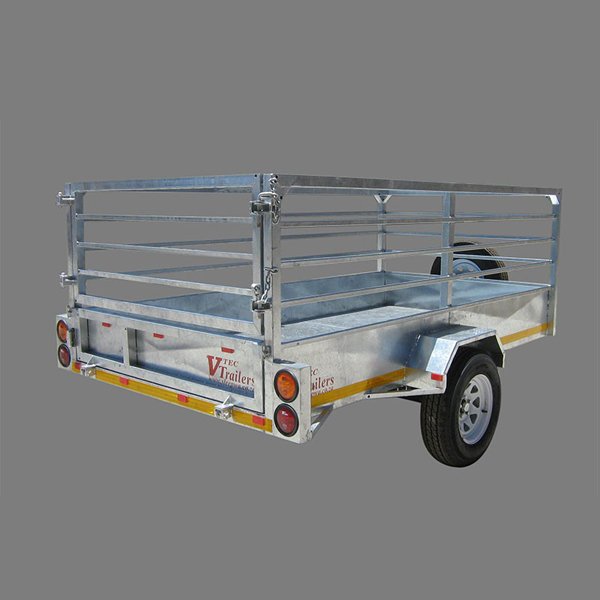

750kg GVM Single Axle Multi-Purpose Trailer – 3.0m x 1.5m (Model VK9)

1. GENERAL

Type:
Multi-Purpose

GVM:
750kg

2. CHASSIS/FRAME

Chassis Material:
76mm x 38mm x 2mm steel rectangle

A-Frame Material:
76mm x 38mm x 5mm steel open channel

Construction:
Ladder frame

Corrosion Resistance:
Painted 2K Duco

3. BODY/DECK

Size:
3.0m x 1.5m

Floor Material:
2.0mm thick plate

Headboard:
1000mm high, first 300mm closed with plate – main frame built from 50mm square tube

Side Rails/Panels:
1000mm high, first 300mm closed with plate – main frame built from 50mm square tube

Tailgate/Rear Gate:
Tailgate with 2 cattle pins and flap at the back

Ramps:
N/A

Anchor Points:
N/A

4. AXLES/WHEELS

Number of Axles:
1

Axle Type:
Leaf springs

Axle Capacity:
1600kg each

Wheels:
14″

Spare Wheel:
14″ on the A-frame

Jockey Wheel:
48mm in front

5. COUPLER/BRAKES

Coupler Capacity:
N/A

Brakes:
No

6. LIGHTING

Type:
12V LED Lights

7. AVAILABLE UPGRADES

Sides:
Mesh sides available on request

Axles:
Upgrades available on request

Colour:
Available in White, Black, Green or Brown

PLEASE NOTE: Prices subject to change without prior notice.
