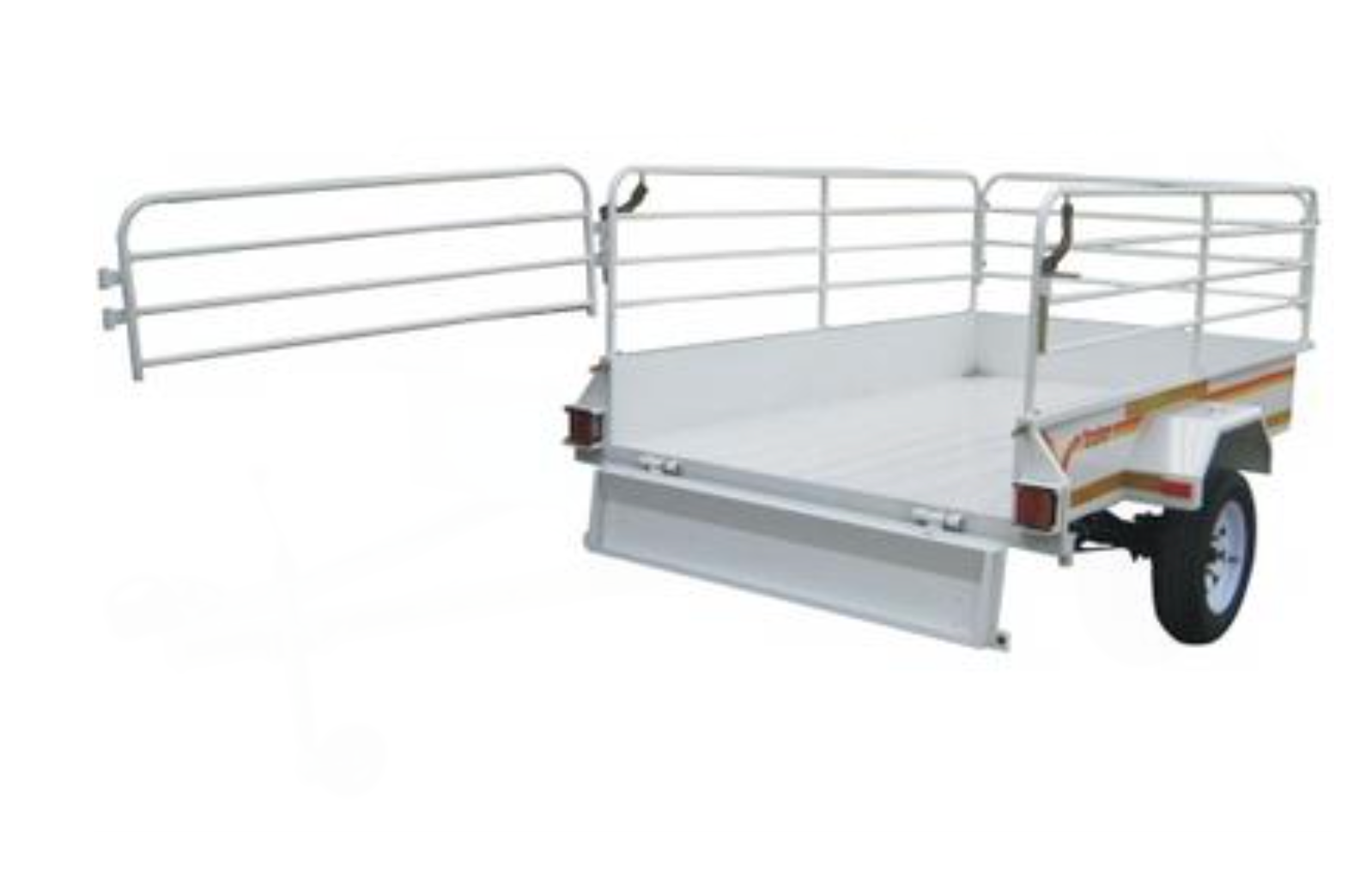

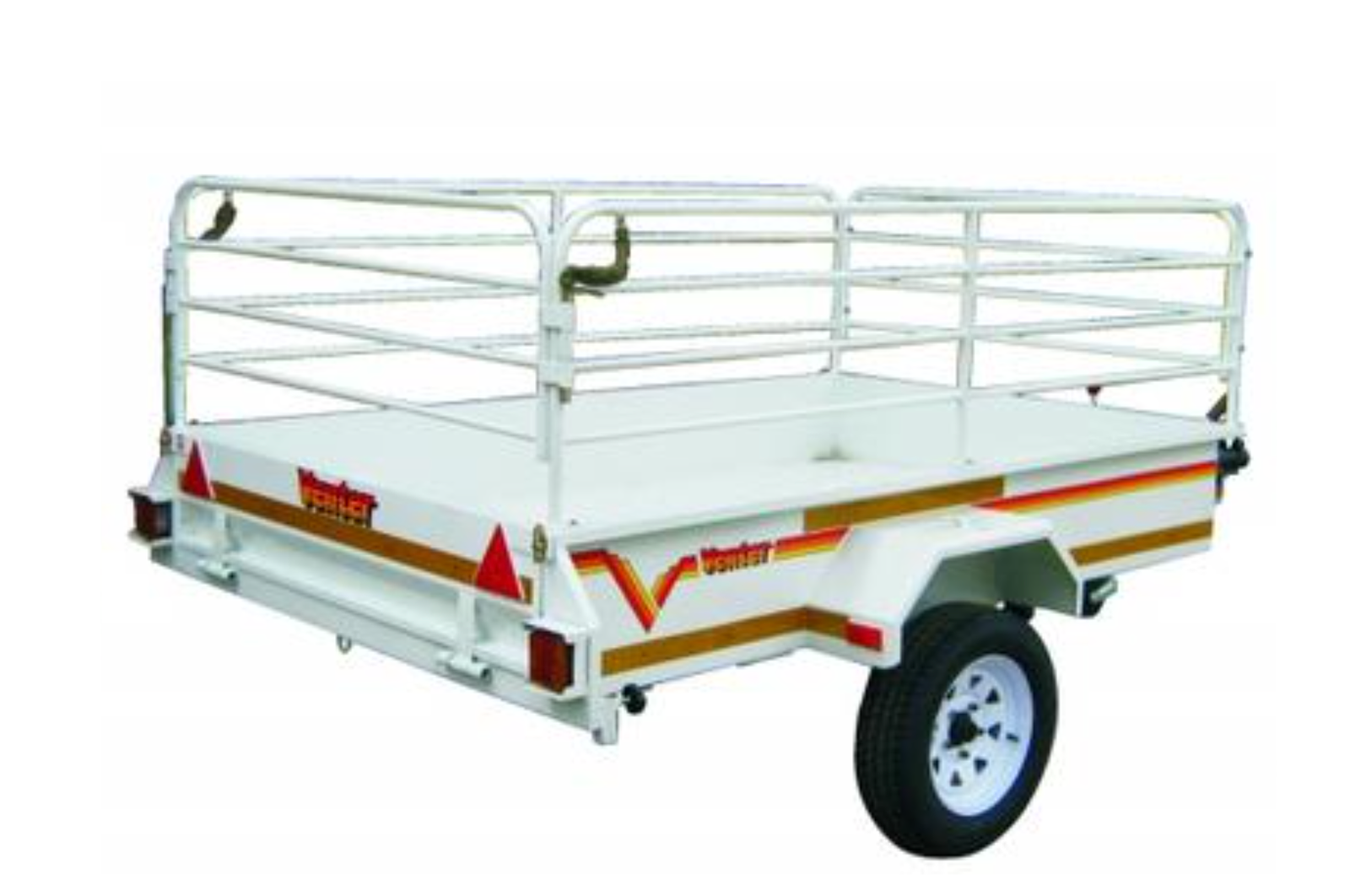

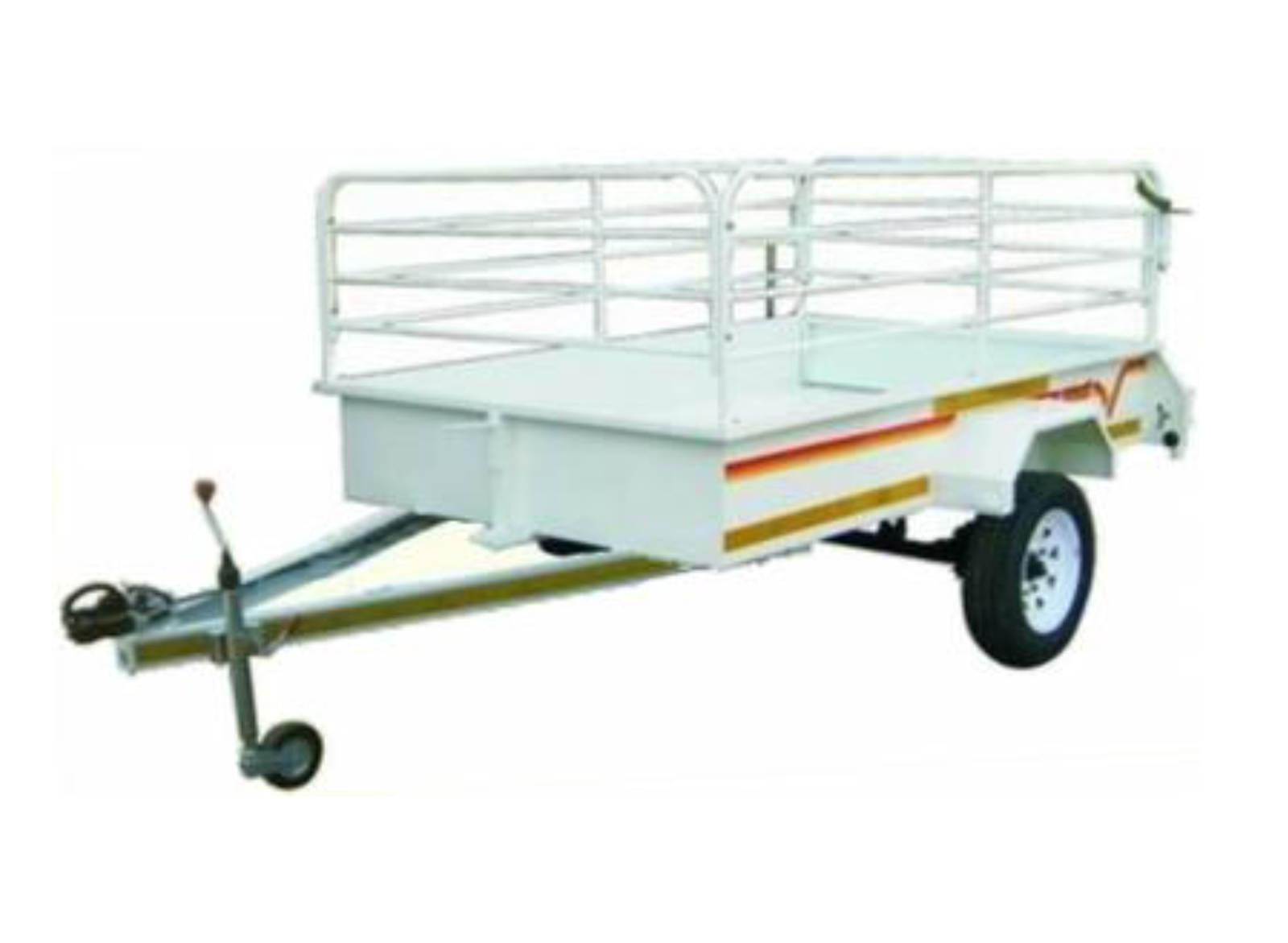

Mini Flatdeck 1/2 Ton with Rails

Where the Mossie runs out of deck, the Mini Flatdeck half ton trailer starts. Body length grows from 1 850 mm to 2 060 mm, the axle rating from 750 kg to 1 250 kg, the leaf pack from four blades to six, and the published tare from 160 kg to 250 kg. Gross vehicle mass stays at 700 kg, so the published payload comes down to 450 kg.

Mini Flatdeck half ton trailer specifications

Why the axle rating matters more than the payload

The interesting number in that table is not the 450 kg payload, it is the 1 250 kg axle sitting under a 700 kg gross rating. The running gear is rated well above anything the trailer is legally allowed to carry, which is why this model is bought by people who load to the limit every week rather than twice a year. Bearings, springs and axle stub all work inside their comfortable range instead of at the top of it, and the six blade pack keeps the deck from bouncing when the load is dense and low.

Features on the Mini Flatdeck

• Load bed of 2 060 mm by 1 200 mm with rails to an 870 mm side height
• Body and floor in 1.6 mm corrosion resistant electro galvanised sheet steel
• Tailgate folds down flat to make loading easier
• Six blade leaf springs on a 1 450 mm axle rated at 1 250 kg
• Spare wheel included, 155 x 13 inch
• Well balanced for towing despite the heavy duty build

Payload, braking and licensing

Published gross vehicle mass is 700 kg and the specification lists no brakes, which is consistent: braking only becomes a legal requirement above 750 kg. Note the tare, though. At 250 kg empty this trailer eats a third of its own gross rating before anything is loaded, so the usable 450 kg is genuinely lower than on the smaller Mossie. Weigh dense loads rather than guessing, and read the towing rules in the National Road Traffic Act rather than relying on licence codes repeated at the tow bar shop.

Mini Flatdeck against the 14 inch flatdeck

Same body, different running gear. The Flatdeck 14 inch trailer with rails uses the identical 2 060 mm by 1 200 mm deck but moves to an eight blade leaf pack and 195 x 14 inch five stud wheels, which pushes tare to 270 kg and published payload down to 430 kg. You are paying for wheel size and spring rate there, not for space. If you want more deck instead, the longer 2 360 mm models further up the non-braked utility trailer range are the honest next step.

What the extra money buys

A budget range covers similar jobs at roughly half this price and it is the right buy for occasional light work. On this unit the money goes into published figures and hardware: a stated 250 kg tare and 700 kg gross rating, a 1 250 kg axle with a six blade pack under a half ton legal limit, galvanised sheet steel on both body and floor, and a spare wheel supplied rather than optional. Those are the things that show up after three years of weekly loading.

Who this trailer suits

Smallholders, plumbers, builders working off a bakkie and anyone moving bulky rather than merely heavy loads. Two metres of deck takes fencing droppers, ladders, roof sheeting and pallets that will not sit flat on a shorter body, and the rails keep a loose load contained without needing a bin. If your loads are dense and short, the smaller model carries more mass for less money.

Specifications
